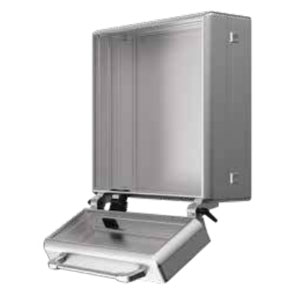

PRO 6091 K
Panel With One Handle + 60mm Keyboard
Enclosure and Control Panel
Control panels are essential for managing machinery and production lines. Our panel systems, designed to integrate seamlessly with our arm systems that enhance both safety and usability, feature an ergonomic structure complemented by a sleek, modern design.
| Article No | Installation Area | Back Area | Installation Depth | |||||
|---|---|---|---|---|---|---|---|---|
| PRO | Width (mm) | Height (mm) | Depth (mm) | Hinge | Locking Mechanism | H Profile Installation Platform | Installation Depth (mm) | 118×65,5 mm |
| 6091-2525 K | 250 | 250 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-2530 K | 250 | 300 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-3030 K | 300 | 300 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-3040 K | 300 | 400 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-4040 K | 400 | 400 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-4050 K | 400 | 500 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-5050 K | 500 | 500 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-5060 K | 500 | 600 | 150 | Yes | Yes | Yes | 150 | Yes |
| 6091-6060 K | 600 | 600 | 150 | Yes | Yes | Yes | 150 | Yes |
*Please contact with us for non-standard panel sizes
