ARM050.420
90° Angle Piece
ARM050.420

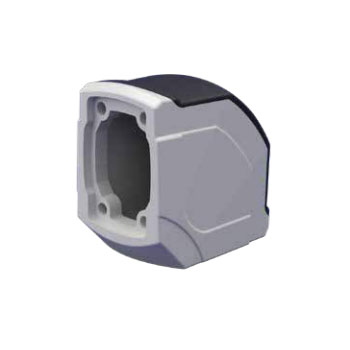

ARM050.420 90° Angle Piece is a fixed corner module that connects the operator arms in horizontal and vertical axis. Based on the structural features and usage conditions, this product can be used for light loads panels positioned in short distance and without any compatibility issues.
| Weight | 365 gr |
| Color Ral No | RAL 7035 / Cover RAL 7016 |
| Package | 1 |
| Package Dimension | 110x65x95 mm |
| Material | Aluminum |
| Movement | Fixed |
