ARM050.830

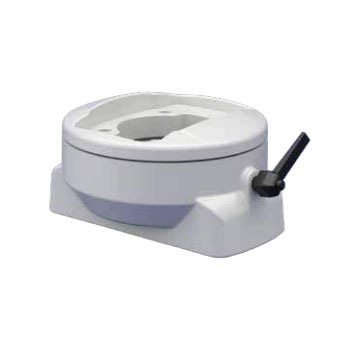

Rotatable Panel Adaptor Vertical
ARM050.830

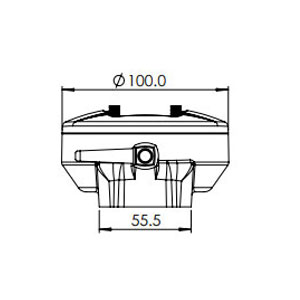

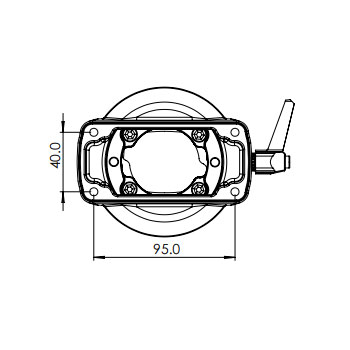

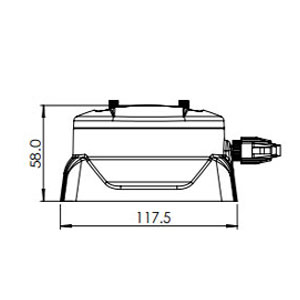

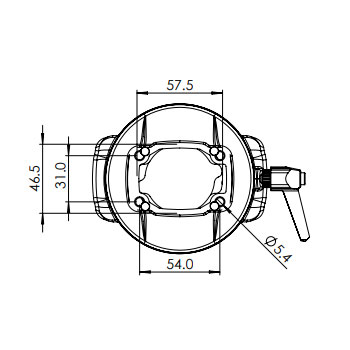

ARM050.830 Rotatable Panel Adaptor Vertical is the connector between the operator panel and the operator arm. The dimension of the adaptor surface is 118x65mm which allows a 315° smooth rotation to the left and right. This product is designed for light loads and a suitable depth ratio.
| Weight | 720 gr |
| Color Ral No | RAL 7035 |
| Package | 1 |
| Package Dimension | 135x70x110 mm |
| Material | Aluminum |
| Movement | Rotatable 315° |
