Products
Joint Parts
ARM130.505

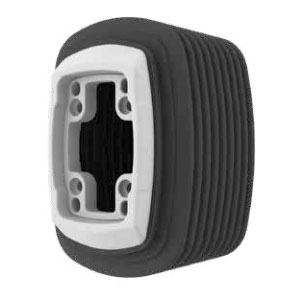

Steel Interconnection Module – With Bellow
ARM130.505
ARM130.505 Steel Interconnection Module - With Bellows is used to mount two operator arms to the connection points horizontally enabling them to move at 90° to the right or 90° to the left. The cast steel body of this product safely combines heavy and long arm configurations.
| Weight | 1000 gr |
| Color Ral No | RAL 7035 (Bellow RAL 7016) |
| Package | 1 |
| Package Dimension | 245x180x160 mm |
| Material | Steel Casting |
| Movement | Right 90° / Left 90° |
