Joint Parts
ARM130.600

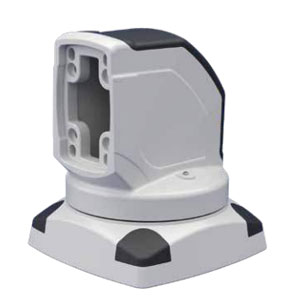

Rotatable Top Mounted 90° Angle Joint




ARM130.600
ARM130.600 Rotatable Top Mounted 90° Angle Joint is produced to provide a connection for a high position point. It allows a smooth rotation for the panel horizontally and provides a 315° movement mobility to the right or left. This product is designated for configurations with a heavy loads.
| Weight | 5900 gr |
| Color Ral No | RAL 7035 (Cover RAL 7016) |
| Package | 1 |
| Package Dimension | 210x240x220 mm |
| Material | Aluminum |
| Movement | Rotatable 315° |
